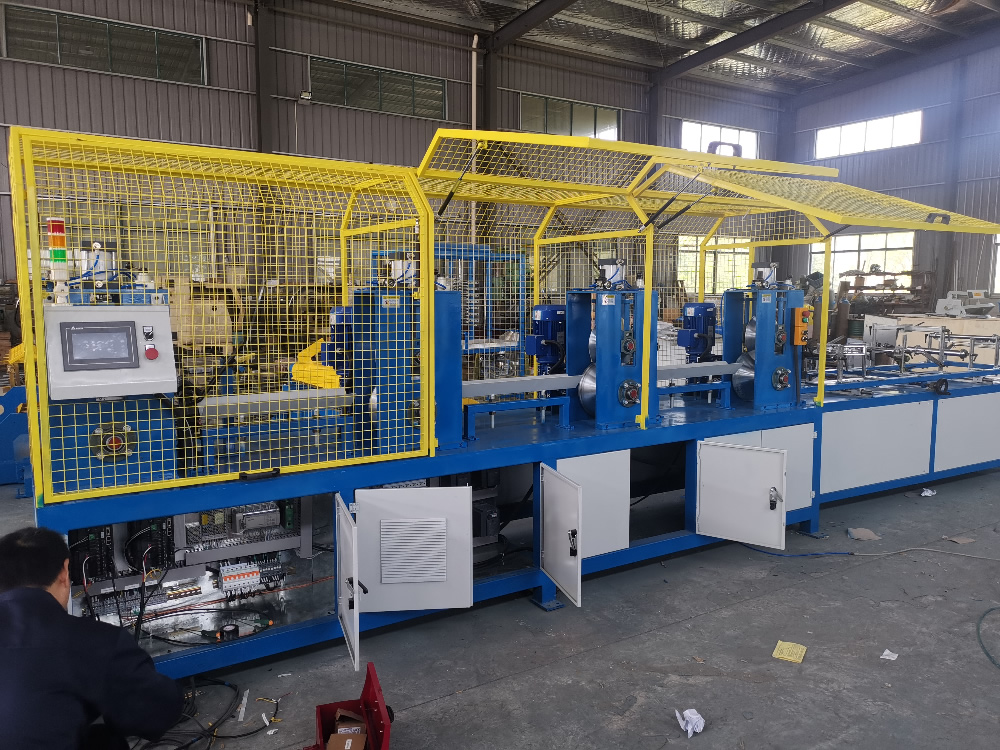

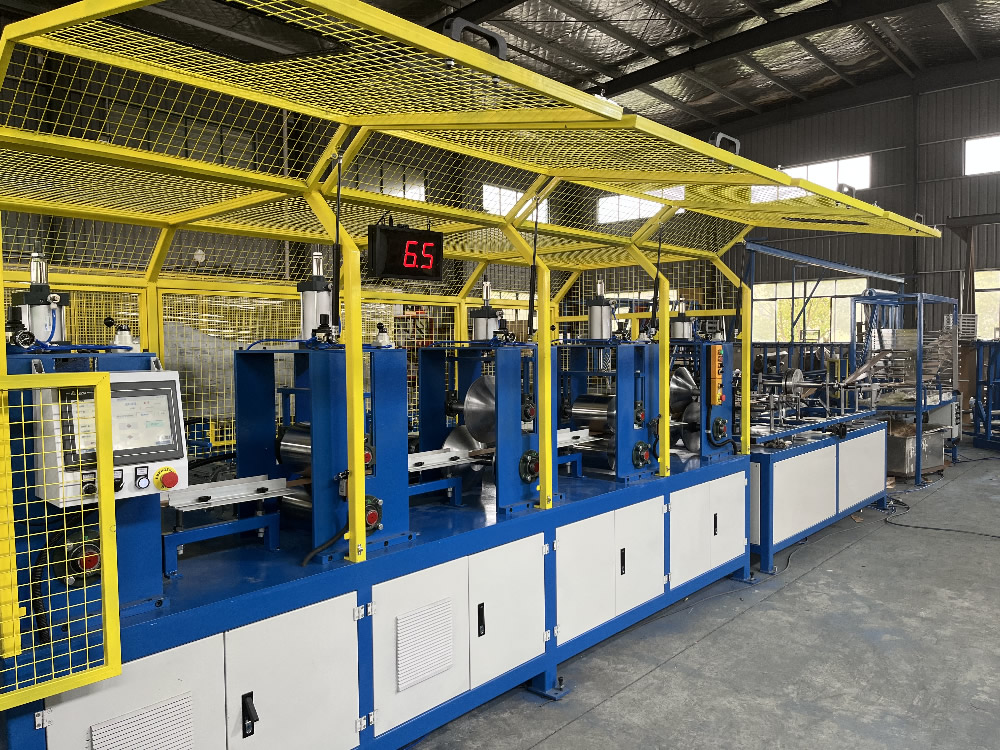

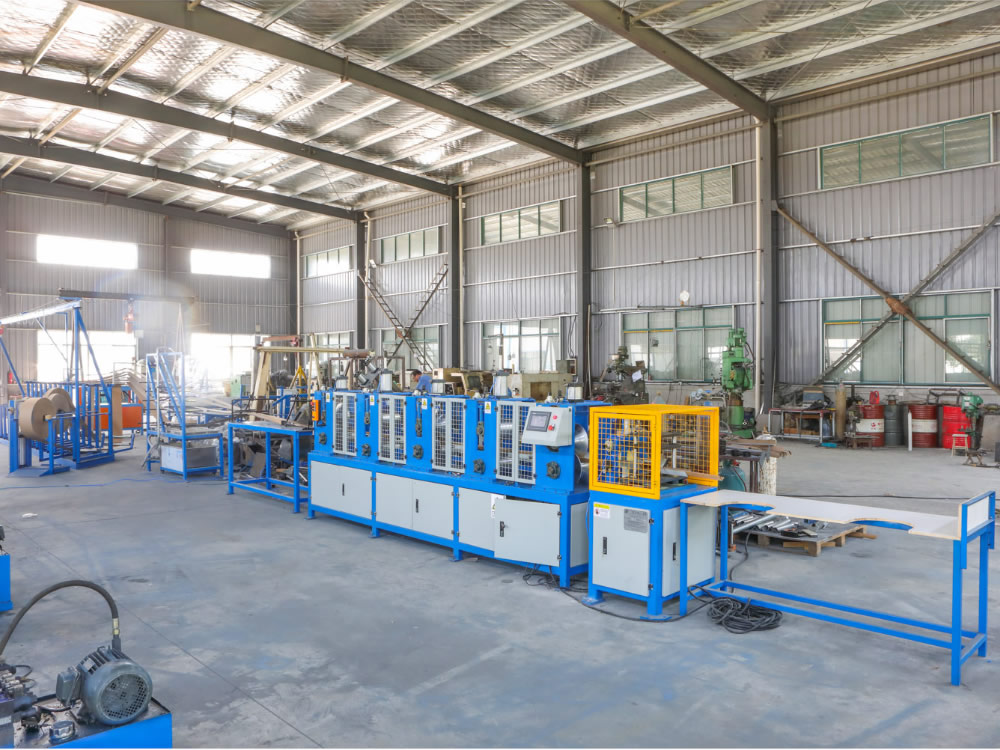

V/L flatboard and notching edgeboard machine

Backed with the support of a highly proficient team, we are a renowned manufacturer of a wide range of Edge board Making Machine. Available for clients in different models and configurations, these machines are widely used for making a variety of edge protectors that are high in demand in the packaging sector. Hassle free in operation, this Edge board Making Machine is wisely manufactured in strict accordance with industry standards using premium quality materials.

Model Number : ZHJ-120APS

Brand Name : STM

Place of Origin : Suzhou China

Certification : SGS

Warranty : 1 year

Delivery Time : 50 days

Payment Terms : T/T, L/C, Western Union

V board size	1515mm-100100mm
V board thickness	1.5mm-10mm
Flat board width	30-20mm
Flat board thickness	2-8mm

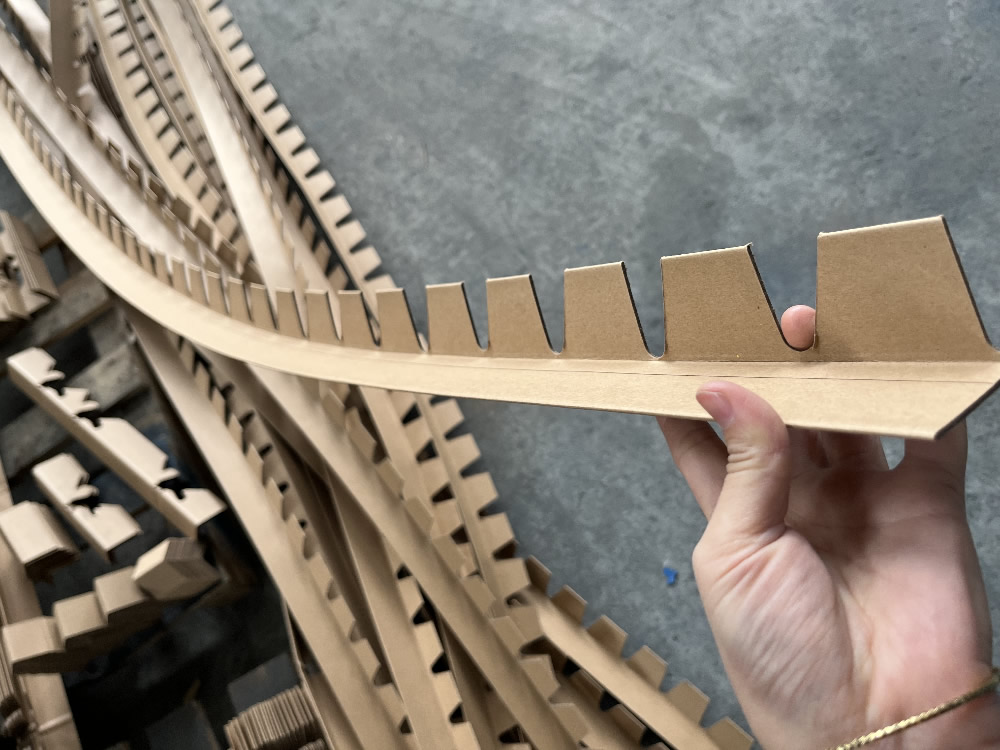

V notching	3030-100100mm
V notching thickness	2-5mm
Min. notching length	200mm
Shortest cutting Length	50mm
Max cutting Length	9999mm
Bobbin paper	>300gsm；
Kraft paper	>160gsm
Glue	latex, PVA or starch glue
Max. quantity of Layer	14 layers of paper in total
Top designed speed	60m/min;
Overall size	L25D3.5H2.5 m
Assembly Power	27KW
